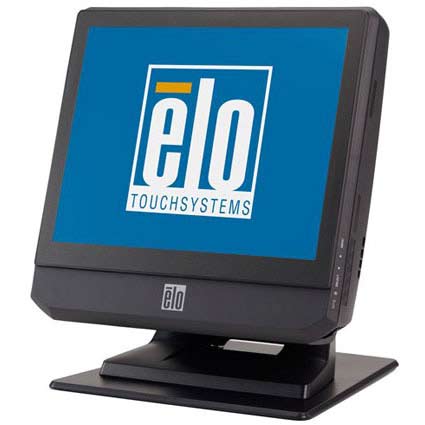

| Series B Touchcomputer Specifications |
15B2 15-inch model
|
17B2
17-inch model |
|
Enclosure Color |
Dark
grey |
|
Processor |
Intel 1.86GHz Atom Dual-Core N2800; 1MB L2 Cache; 2.5 GT/s Direct Media
Interface (DMI) |
|
Memory (RAM) |
2GB
1333MHz DDR3 SO-DIMM on 1 of 2 slots. Expandable to 4GB |
|
Display |
15.0" diagonal, Active matrix TFT LCD (CCFL), 4 x 3 |
17.0" diagonal, Active matrix TFT LCD (LED), 5 x 4 |
|
Useful Screen Area (W x H) |
12.0" x 9.0" (304.0mm x 228.0mm) |
13.3" x 10.6" (338.0mm x 270.0mm) |
|
Native (optimal) Resolution |
1024
x 768 |
1280
x 1024 |
|
Colors |
16.7
million |
|
Touch Technologies |
AccuTouch ("no-bezel" resistive); iTouch Plus (zero-bezel multi-touch
surface acoustic wave) |
|
Brightness (typical) |
LCD
panel: 250 nits; AccuTouch: 200 nits; iTouch Plus: 225 nits |
|
Response Time–total (typical) |
8ms
|
5ms
|
|
Viewing Angle (typical) |
Horizontal: ±70° or 140° total;
Vertical: 60°/65° or 125° total |
Horizontal: ±80° or 160° total;
Vertical: ±80°or 160° total |
|
Contrast Ratio (typical) |
700:1 |
1000:1 |
|
Security Lockouts |
Power and control buttons lock |
|
Chipset |
Intel NM10 Express |
|
Video |
Intel GMA 3600 |
|
Serial Ports |
2 x
Native RS-232 |
|
USB
Ports |
6 x
USB 2.0 (4 on I/O, 1 x USB side access, 1 x USB hidden/protected).
(Additional internal ports available for optional Elo peripherals.)
|
|
Ethernet Port |
1 x
LAN RJ45 (Gigabit) |
|
Cash
Drawer Port |
Built-in 12V/24V Cash Drawer Port (24V default; selectable via jumper)
|
|
Additional Video Out |
1 x
2nd VGA out port |
|
Audio Ports |
1 x
3.5mm line-in; 1 x 3.5mm line-out; 1 x 3.5mm mic-in |
|
Speakers |
Two
2W internal speakers |
|
Hard
Disk Drive |
320GB 2.5" 5400rpm Advanced Format (4K) SATA HDD |
|
Operating System Options |
No
Operating System; Microsoft Windows XP Professional Service Pack 3
(32-bit only); Microsoft Windows 7 Professional Service Pack 1 (32-bit
only) |
Touchcomputer Dimensions
(max. with stand, dimensions vary with tilt and options) |
14.0" x 10.5" x 14.3" (354.4mm x 267mm x 363.5mm) |
15.2" x 10.5" x 14.2" (386.4mm x 267mm x 361.0mm) |
|
Weight |
With
stand: 17.9lbs (8.1kg); without stand: 13.0lbs (5.9kg); shipping:
24.5lbs (11.1kg) |
With
stand: 19.8lbs (9.0kg); without stand: 15.0lbs (6.8kg); shipping:
26.4lbs (12.0kg) |
|
Shipping Box Dimensions |
7.4"
x 10.2" x 21.9" (443mm x 258mm x 555mm) |
|
Power Consumption (max.) |
47W
(without peripherals) |
48W
(without peripherals) |
|
Temperature |
Operating: 32°F to 95°F (0°C to 35°C); Storage -4°F to 140°F (-20°C to
60°C) |
|
Humidity (non-condensing) |
Operating: 20% to 80%; Storage: 5% to 95% |
|
Warranty |
3
years |
|
MTBF
|
50,000 hours demonstrated |
|
Power Supply |
External 12VDC universal-type power supply brick; AC input voltage:
100-240VAC;
Input frequency: 50-60Hz; max. output power: 150W (max. draw: 170W)
|
|
Agency Certification |
UL |
