Epson TM-U220 Support Page Quick Links Description     TM-U220   FAQ Interfaces     Description   Installation Guide Printer Set-up guide   DIP Switch Settings   Windows Drivers   Troubleshooter   DIP Switch Settings Models TM-U220 (US Models) Note: turn off the printer before changing switch settings. Serial Interface   Parallel, USB, Ethernet, Wireless Interface Installing Interfaces For instructions on installing or configuring a Connect-It interface card please choose from the list below: Serial Interface Installation Guide Parallel Interface Installation Guide USB Interface Installation Guide Ethernet Interface Installation Guide Wireless Interface Installation Guide IDN Installation Guide Windows Drivers Installing the Device Drivers for Windows To obtain the latest Device Drivers from Epson: Download and Install Epson’s drivers  available from www.epson.com Click on TECHNICAL RESOURCES Select the printer model under the menu Click the download drivers on the printer page

Troubleshooting

Problem:  Printer turns on but won't grip or feed paper.

There are 2 wire clips on either side of the ribbon cage that holds the paper against the print bar.
Sometimes in shipping they pop off. They are easy to check and reseat if they have come off.

Here’s how to check:

1> Open both front and back clamshell covers of printer

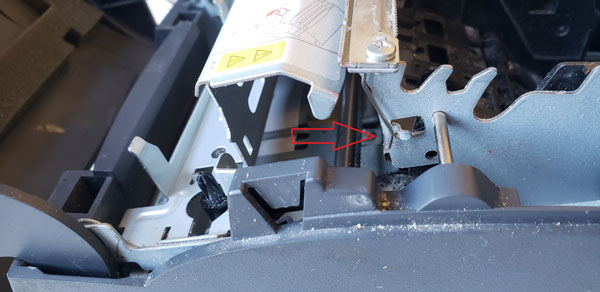

2> Locate the wire clips on either side of the ribbon case (see clip off diagram below)

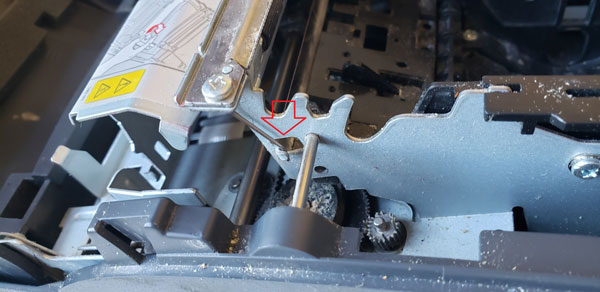

3> Check to see that the clip is behind the metal stop (see clip on diagram below)


4> If it has come off on either side it can be put back in place using a flat blade screw driver


5> Close covers and try printing again
