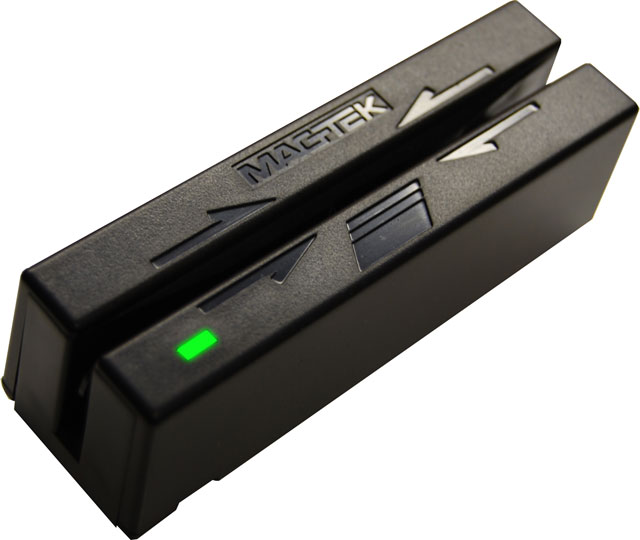

MagTek SureSwipe Card Readers
|
|
|
Versatile, low cost, and easy to use, the
MagTek reads up to three tracks of information with a
single swipe in either direction
Includes two magnetic read heads
|
 |
|
As low as $39.95
product brochure |
Features
|
The MagTek SureSwipe features a magnetic
read head on either side, saving card flipping and checkout time. The
SureSwipe is available with a USB interface in either HID or a Keyboard
Emulation mode and it can be reconfigured in the field. The SureSwipe
reader captures 3 tracks of data from all ISO and AAMVA encoded magnetic
stripe cards. A green/red LED indicator on the reader provides the
operator with status of the reader operations. |
|
|
|
Description
|
The MagTek™ compact magnetic stripe reader can read
1, 2, or 3tracks of magnetic stripe information. In addition, it has full data
editing capabilities.
When connected to the host computer as a keyboard wedge, the MagTek is completely compatible with the host’s software. The
decoded data appears to the host as if it were entered manually by
the operator through the keyboard.
This unit is fully programmable through the keyboard. The data can
be formatted with preamble/postamble and terminator characters to
match the format expected by the host.
Power, when the reader is configured as a keyboard wedge, is
obtained from the host. |
|
|
|
Operation
|
The
MagTek magnetic stripe reader is easy to operate. Just follow these
simple steps:
- Make sure the reader is properly connected and is
receiving sufficient power.
- To read a card, slide the card, in either direction, through the
reader slot, with the magnetic stripe facing the magnetic head (LED
side).
- While swiping the card through the reader, the LED will go off.
- Once the entire magnetic stripe has been read, the LED indicator
will light up as green to signal a "good read." If a good read is not
obtained, the LED indicator will light up as red.
- A beep will also sound to indicate a good read on each track.
|
Prices
|
|
Magtek P/N |
Description |
Price |
|
21073131 |
iDynamo 5 - Secure Card Reader for Lightning
Connector Apple iPhone, iPod, and iPad Devices, works with all Apple
IOC,SECURITY |
$59.95
MAG131R |
|
21073075 |
DYNAMAG Centurion 3-Track USB, BLACK, USB MAGNESAFE 2.0
Centurion Secure Card Reader Magnetic Stripe Reader -
Magnetic Stripe Track Configuration: Triple Track -
Color: Encrypted Mode Only, Black - Product - USB 2.0
USB - HID |
$49.95
$39.95
MAG075N |
|
21073062 |
DYNAMAG 3-Track USB, BLACK, KeyBd Emulation, MAGNESAFE 2.0
Magnetic Stripe Reader - Magnetic Stripe Track
Configuration: Triple Track - Color: Black -
Product - Dimensions: 1.2" Height x 1.3" Width x 3.9" Length -
Interfaces/Ports: USB 2.0 USB - PS/2 Keyboard Wedge |
$54.95
MAG062 |
|
21040108 |
MINI MSR, USB, KeyBd Emulation, Track 1, 2 & 3B, BLACK, (DYNAMAG
-21073062)
Powered by USB (No external power supply
required).Dual and Three Track capability.
Bi-directional read capability Dual color LED. Bi-directional read
capability |
$64.95
MAG108 |
|
21040110 |
MINI MSR, USB, KeyBd Emulation, Track 1 & 2B, BLACK
Powered by USB (No external power supply required).
Dual and Three Track capability.
Bi-directional read capability Dual color LED. Bi-directional read
capability |
$61.95
MAG110 |
|
21040140 |
MINI MSR (SURE SWIPE) USB, HID B, BLACK, Track 1, 2 & 3,
(needs HID driver)
The USB Dual Head Mini Swipe Reader is available in
HID mode - and can be reconfigured in the field.
A green/red LED indicator on the reader provides the operator with
status of the reader operations |
$63.95
MAG140 |
|
21040145 |
MINI MSR (SURE SWIPE) USB, KeyBd Emulation, BLACK, Track 1, 2
& 3
The USB Dual Head Mini Swipe Reader is available in
Keyboard Emulation mode -
and can be reconfigured in the field. A green/red LED
indicator on the reader provides the operator with status of the
reader operations. |
$35.95
MAG145R |
$63.95
MAG145 |
|
|
|
|
